MACFAB 550



FEATURES
• Produces a mill size bale (weight 550g)
• Ideal for large amounts of material
• Fully automated bale ejector: simplifies removal of bale
• Retaining Claws to reduce spring back
• Five wire tying for a more secure bale

OPTIONAL EXTRA:
• Available with 220 - 240 volts power supply
• Unique patented prong shaper design eliminates the need for pallets when lifting, stacking and transporting bales

TECHNICAL INFORMATION
BALER DIMENSIONS
Height 3.217 m
Width 2.115 m
Depth 1.200 m
Weight 1650 kg
Transportation Ht 2.50 m
Power Supply 380 - 400 V
  (three phase)
Motor 11 kW 32 Amp
Pressing Force up to 50 Ton
Noise Level 74 decibels

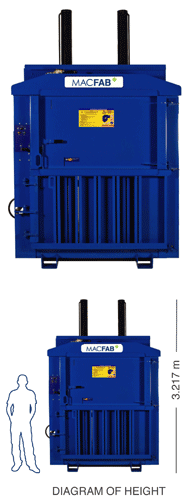

550 baler
BALE DIMENSIONS LOADING APERTURE SIZES
Height 1.200 m   Height 0.880 m
Width 1.500 m   Width 1.500 m
Depth 0.769 m   Depth 0.769 m
Weight Up to 550 kg
(depending on material used)
Cycle Times 40 seconds
